Active Regions that have recently disappeared from the disk
| NAR | TIME_FIRST | TIME_LAST | NDAY | DYEL_FST | DYEL_LST | DYEL_AMX | AREA_MAX | NSPOT_MAX | NFLARE | XCLASS_MAX | NSEP | GLE | AV_LAT | AV_LONGC | URL_SMON | URL_STAT |
| 13742 | 2024-07-10 00:00 | 2024-07-20 00:00 | 11 | 3.5 | 13.5 | 4.5 | 80 | 7 | 7 | C6.1 | -20.82 | 171.9 | Link | Link |
||
| 13743 | 2024-07-10 00:00 | 2024-07-21 00:00 | 12 | 3.1 | 14.1 | 7.1 | 220 | 23 | 13 | M5.1 | -9.25 | 164.3 | Link | Link |
||
| 13744 | 2024-07-10 00:00 | 2024-07-22 00:00 | 13 | 1.8 | 13.8 | 4.8 | 180 | 8 | 33 | M3.2 | +15.69 | 148.5 | Link | Link |
||
| 13745 | 2024-07-11 00:00 | 2024-07-22 00:00 | 12 | 3.4 | 14.4 | 11.4 | 70 | 7 | 7 | M1.8 | -18.92 | 155.9 | Link | Link |
||
| 13747 | 2024-07-12 00:00 | 2024-07-22 00:00 | 11 | 4.5 | 14.5 | 5.5 | 180 | 3 | 0 | -24.91 | 154.1 | Link | Link |
|||
| 13748 | 2024-07-13 00:00 | 2024-07-23 00:00 | 11 | 3.5 | 13.5 | 3.5 | 30 | 6 | 0 | +14.91 | 133.1 | Link | Link |
|||
| 13749 | 2024-07-14 00:00 | 2024-07-25 00:00 | 12 | 2.8 | 13.8 | 2.8 | 50 | 4 | 0 | -32.75 | 106.2 | Link | Link |
|||
| 13750 | 2024-07-14 00:00 | 2024-07-24 00:00 | 11 | 2.6 | 12.6 | 2.6 | 110 | 9 | 3 | C9.8 | -19.91 | 111.5 | Link | Link |
||
| 13751 | 2024-07-14 00:00 | 2024-07-26 00:00 | 13 | 1.7 | 13.7 | 7.7 | 410 | 32 | 68 | M3.6 | -7.92 | 95.2 | Link | Link |
||
| 13752 | 2024-07-15 00:00 | 2024-07-26 00:00 | 12 | 2.7 | 13.7 | 2.7 | 30 | 2 | 0 | +22.17 | 94.5 | Link | Link |
|||
| 13753 | 2024-07-16 00:00 | 2024-07-21 00:00 | 6 | 9.3 | 14.3 | 10.3 | 100 | 11 | 12 | M3.6 | +12.33 | 169.8 | Link | Link |
||
| 13754 | 2024-07-16 00:00 | 2024-07-27 00:00 | 12 | 2.6 | 13.6 | 3.6 | 50 | 7 | 2 | C8.8 | +24.67 | 79.0 | Link | Link |
||
| 13755 | 2024-07-17 00:00 | 2024-07-27 00:00 | 11 | 3.1 | 13.1 | 4.1 | 100 | 8 | 0 | +2.55 | 75.2 | Link | Link |
|||
| 13756 | 2024-07-17 00:00 | 2024-07-29 00:00 | 13 | 2.7 | 14.7 | 3.7 | 100 | 2 | 2 | M5.4 | -18.00 | 67.9 | Link | Link |
||
| 13757 | 2024-07-17 00:00 | 2024-07-29 00:00 | 13 | 2.2 | 14.2 | 3.2 | 60 | 5 | 1 | M1.0 | +17.38 | 60.4 | Link | Link |
||
| 13758 | 2024-07-18 00:00 | 2024-07-21 00:00 | 4 | 10.8 | 13.8 | 10.8 | 60 | 5 | 2 | M1.0 | -7.50 | 158.8 | Link | Link |
||
| 13759 | 2024-07-18 00:00 | 2024-07-24 00:00 | 7 | 7.4 | 13.4 | 10.4 | 230 | 12 | 4 | C6.9 | -5.86 | 117.1 | Link | Link |
||
| 13760 | 2024-07-19 00:00 | 2024-07-25 00:00 | 7 | 7.8 | 13.8 | 7.8 | 20 | 3 | 1 | C2.0 | +19.71 | 113.3 | Link | Link |
||
| 13761 | 2024-07-20 00:00 | 2024-07-27 00:00 | 8 | 6.5 | 13.5 | 9.5 | 330 | 23 | 9 | M1.7 | -9.88 | 82.8 | Link | Link |
||
| 13762 | 2024-07-21 00:00 | 2024-08-01 00:00 | 12 | 2.9 | 13.9 | 10.9 | 440 | 36 | 59 | M8.7 | -11.92 | 18.8 | Link | Link |
||
| 13763 | 2024-07-23 00:00 | 2024-08-04 00:00 | 13 | 2.1 | 14.1 | 7.1 | 160 | 3 | 1 | C4.8 | +3.54 | 342.8 | Link | Link |
||
| 13764 | 2024-07-23 00:00 | 2024-08-04 00:00 | 13 | 1.9 | 13.9 | 7.9 | 100 | 4 | 16 | X1.5 | -3.23 | 341.2 | Link | Link |
||
| 13765 | 2024-07-24 00:00 | 2024-08-05 00:00 | 13 | 2.2 | 14.2 | 9.2 | 480 | 29 | 22 | M4.0 | -11.38 | 329.6 | Link | Link |
||
| 13766 | 2024-07-25 00:00 | 2024-08-04 00:00 | 11 | 3.0 | 13.0 | 9.0 | 230 | 26 | 22 | M4.2 | -7.18 | 332.5 | Link | Link |
||
| 13767 | 2024-07-26 00:00 | 2024-08-05 00:00 | 11 | 3.3 | 13.3 | 5.3 | 220 | 15 | 11 | X1.7 | -9.36 | 319.0 | Link | Link |
||
| 13768 | 2024-07-27 00:00 | 2024-08-02 00:00 | 7 | 7.5 | 13.5 | 13.5 | 500 | 24 | 23 | M7.7 | -16.14 | 21.9 | Link | Link |
||
| 13770 | 2024-07-29 00:00 | 2024-08-05 00:00 | 8 | 7.0 | 14.0 | 10.0 | 340 | 15 | 7 | M2.8 | +7.12 | 327.6 | Link | Link |
||
| 13771 | 2024-07-30 00:00 | 2024-08-02 00:00 | 4 | 11.3 | 14.3 | 11.3 | 10 | 5 | 0 | +1.25 | 7.2 | Link | Link |
|||
| 13773 | 2024-07-31 00:00 | 2024-08-03 00:00 | 4 | 11.3 | 14.3 | 11.3 | 30 | 8 | 3 | M6.3 | -6.00 | 354.2 | Link | Link |
||
| 13778 | 2024-08-03 00:00 | 2024-08-06 00:00 | 4 | 11.5 | 14.5 | 11.5 | 10 | 3 | 0 | -18.00 | 317.2 | Link | Link |
|||
| Search Filter: None | Written: 2024/08/08 06:10 | |||||||||||||||
Explanation of the table contents
| Parameter | Description |
|---|---|
| NAR | NOAA Active Region (AR) number |
| TIME_FIRST | Date/time AR first reported by NOAA |
| TIME_LAST | Date/time AR last reported by NOAA |
| NDAY | No of days AR was reported by NOAA |
| DYEL_FST | Date of first report, in days since projected east limb crossing |
| DYEL_LST | Date of last report, in days since projected east limb crossing |
| DYEL_AMX | Date of maximum area, in days since projected east limb crossing |
| AREA_MAX | Maximum Area of the AR |
| NSPOT_MAX | Maximum number of sunspots in the AR |
| NFLARE | Number of flares observed in the AR |
| XCLASS_MAX | X-ray Class of largest flare observed in the AR |
| NSEP | Number of SEP events while AR was visible |
| GLE | Whether a GLE event occurred while the AR was visible |
| AV_LAT | Average heliographic latitude of the AR |
| AV_LONGC | Average Carrington longitude of the AR |
| URL_SMON | Link to the AR page in SolarMonitor for the date of TIME_FIRST (Use the links at the top to step backwards and forwards in time) |

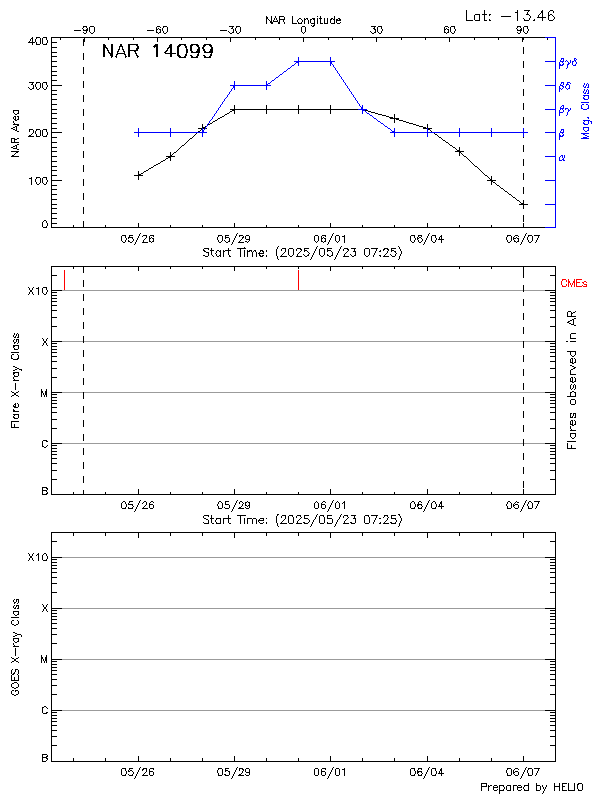

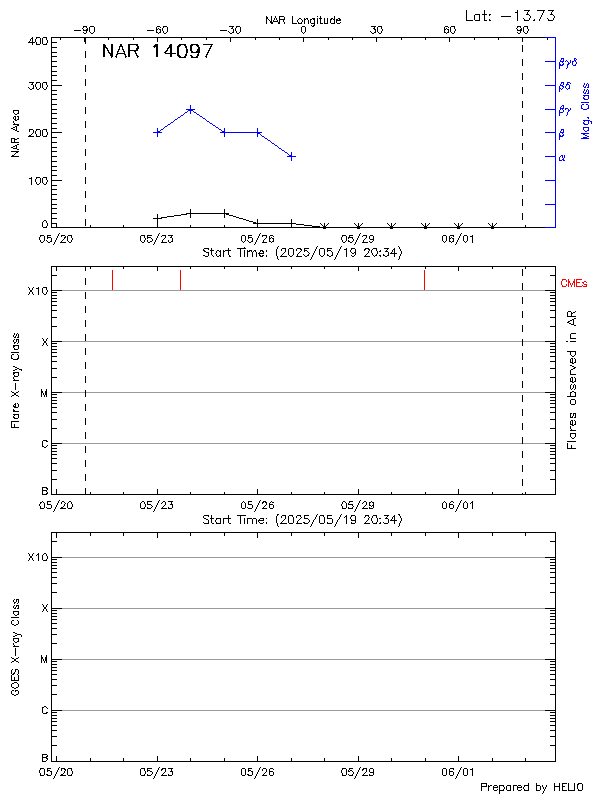

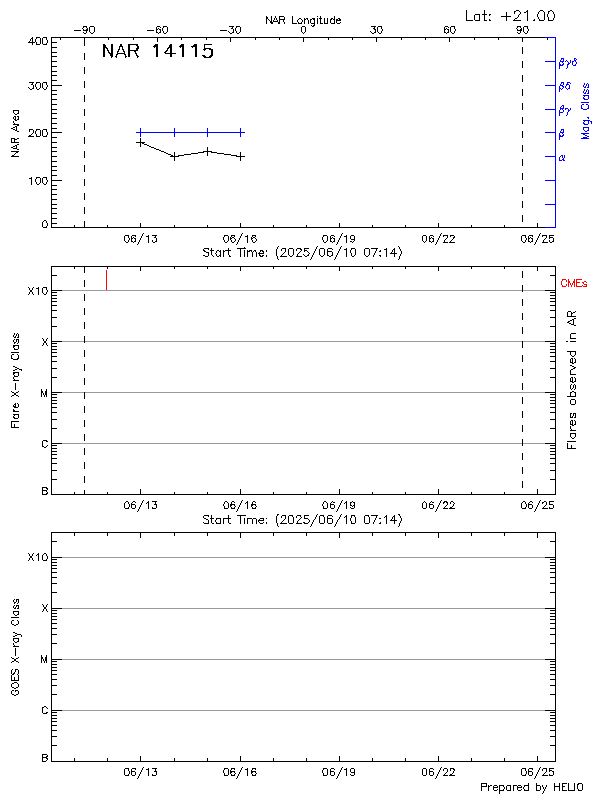

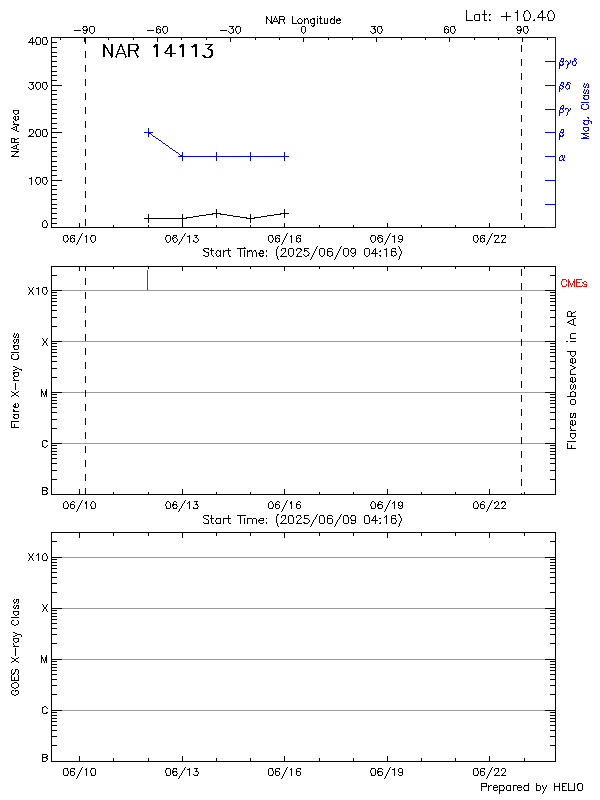

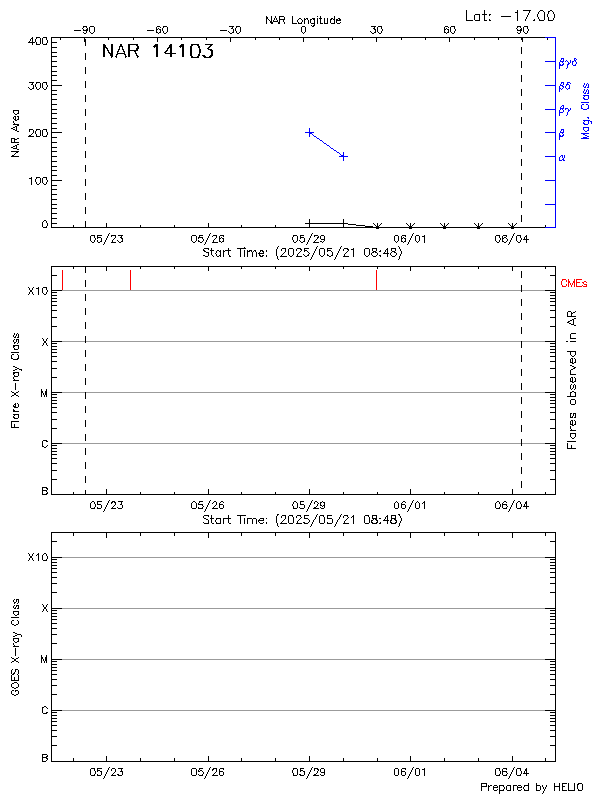

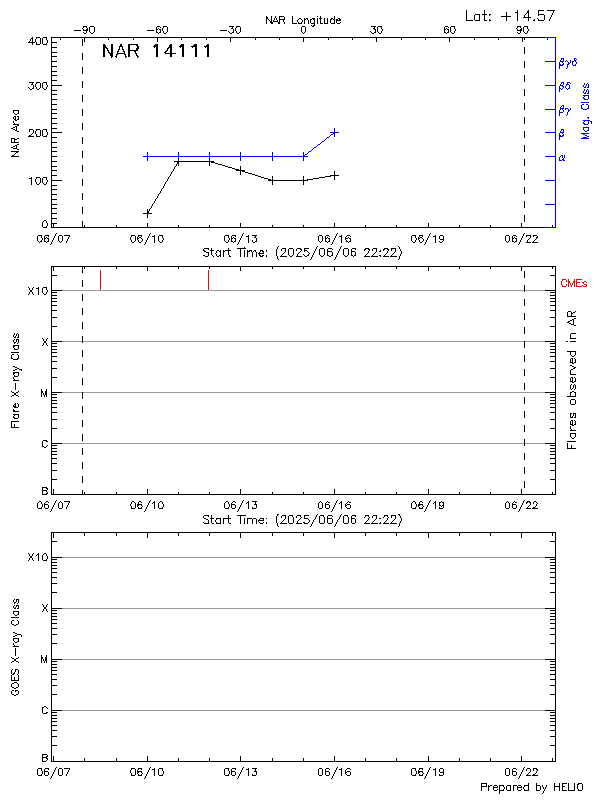

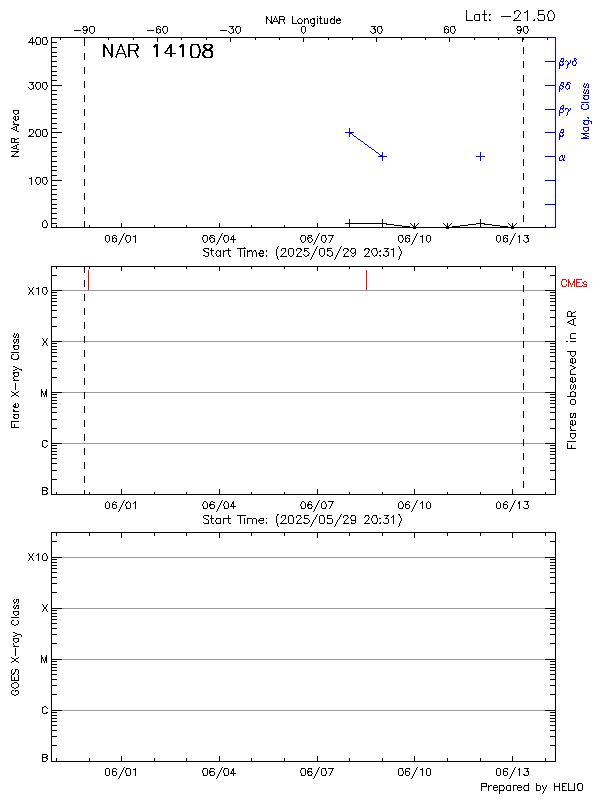

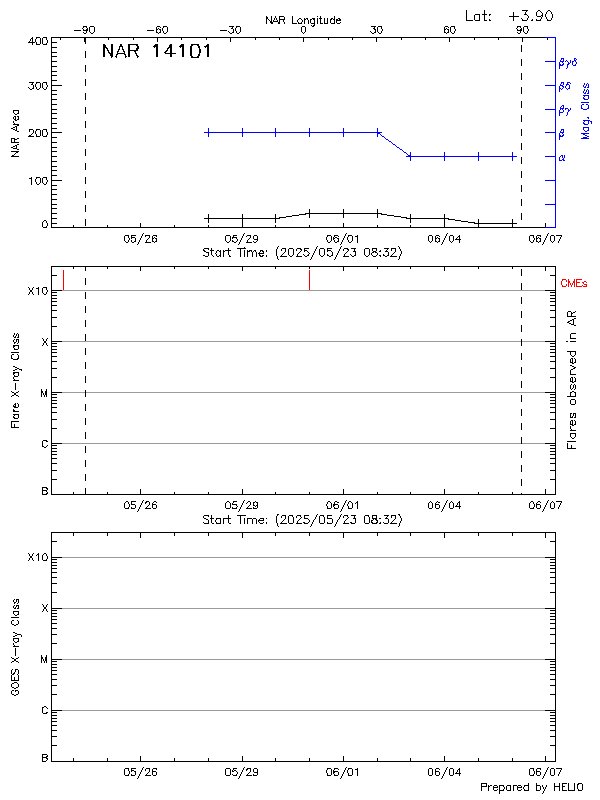

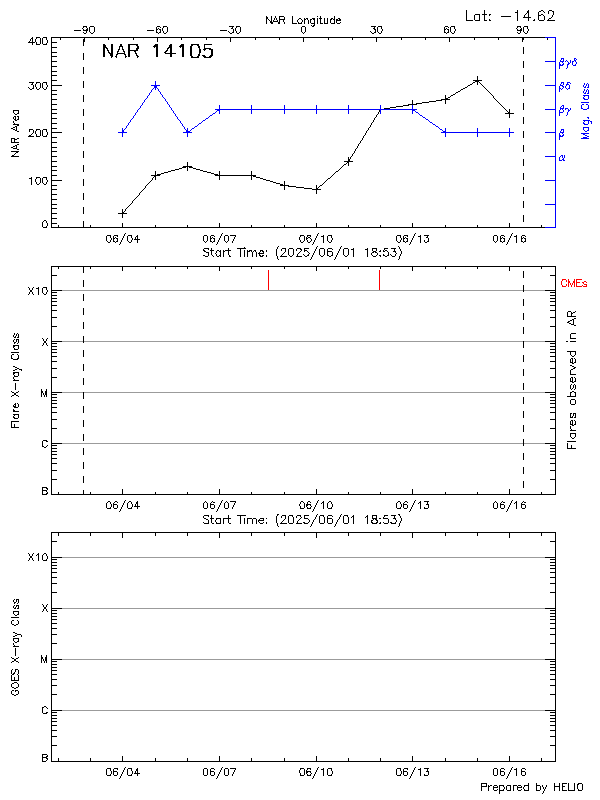

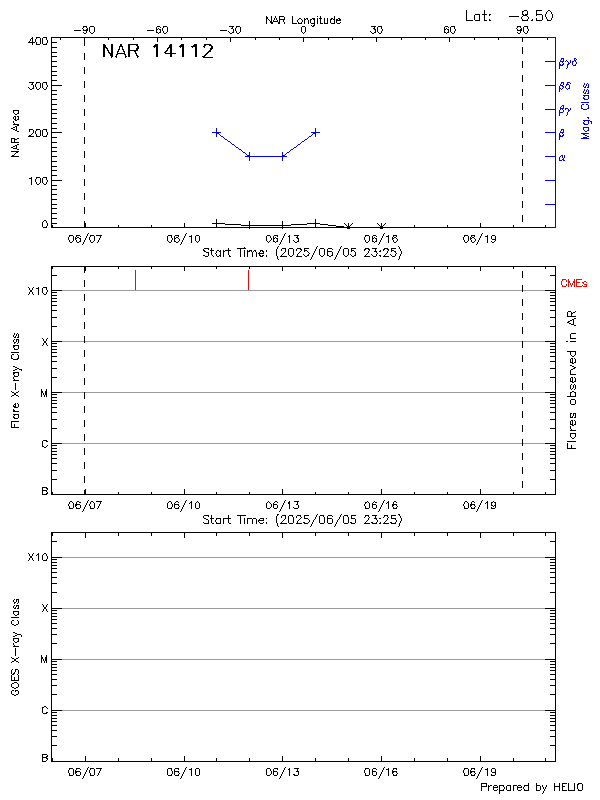

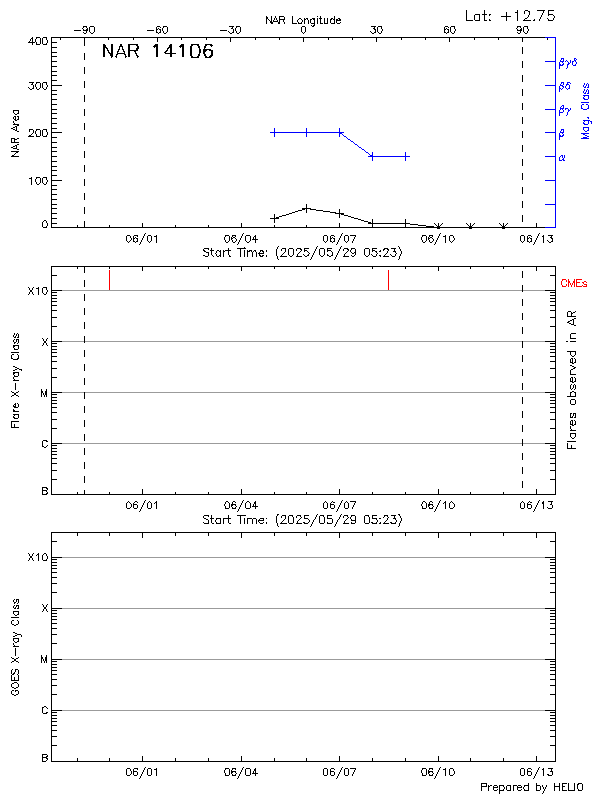

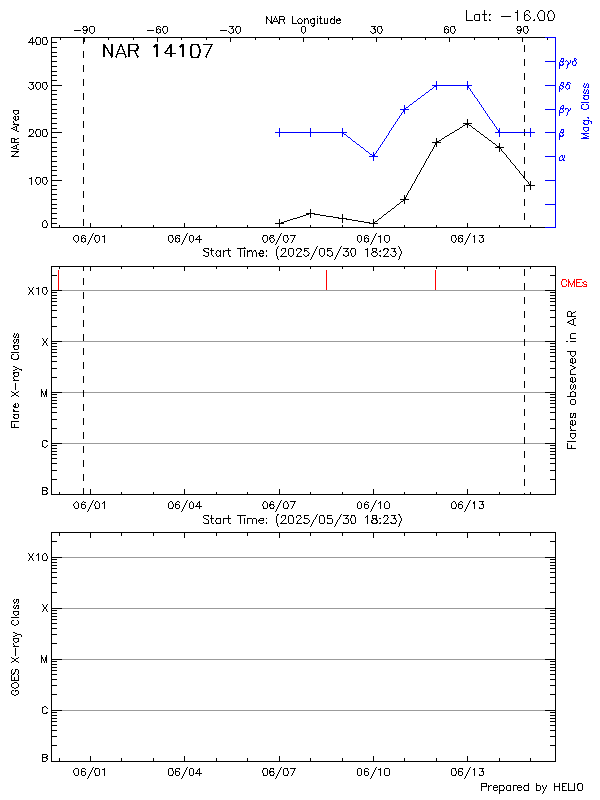

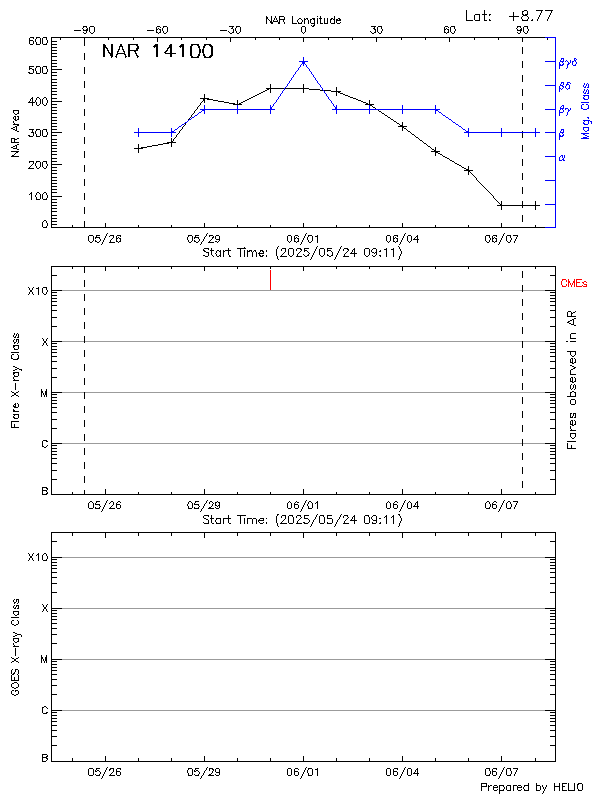

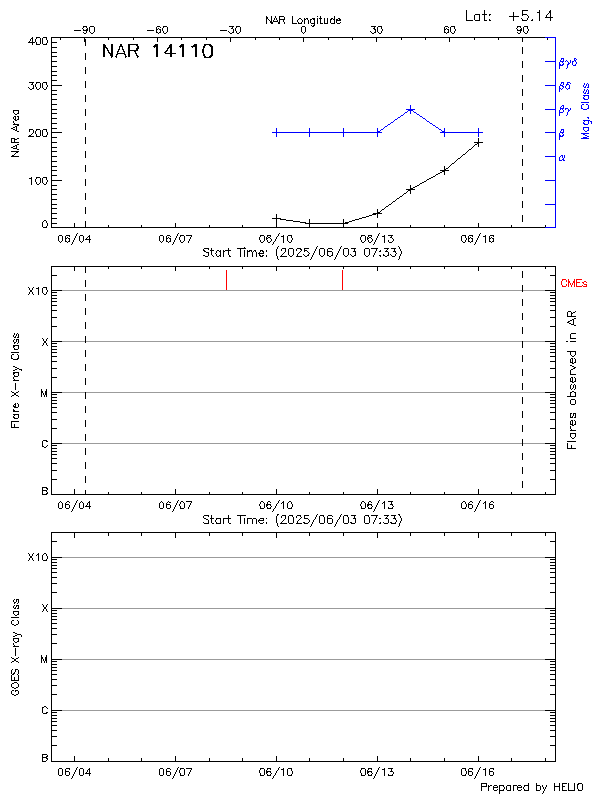

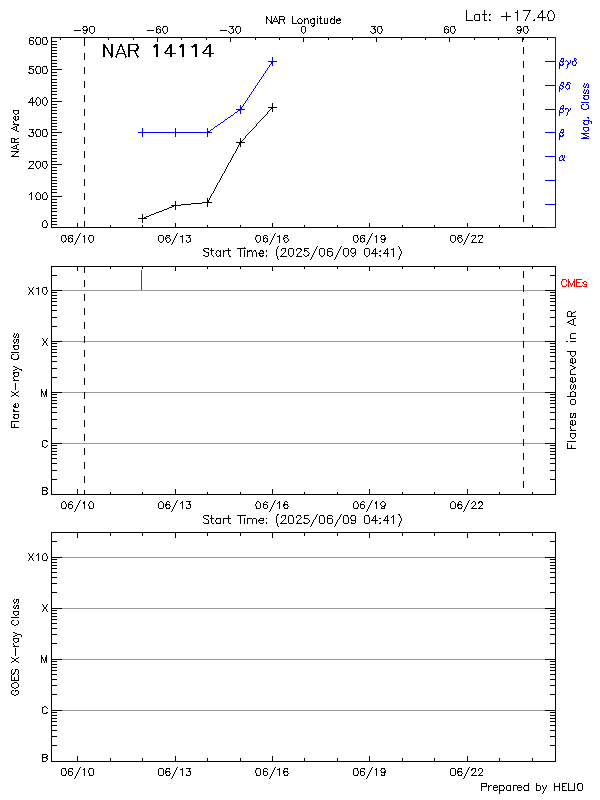

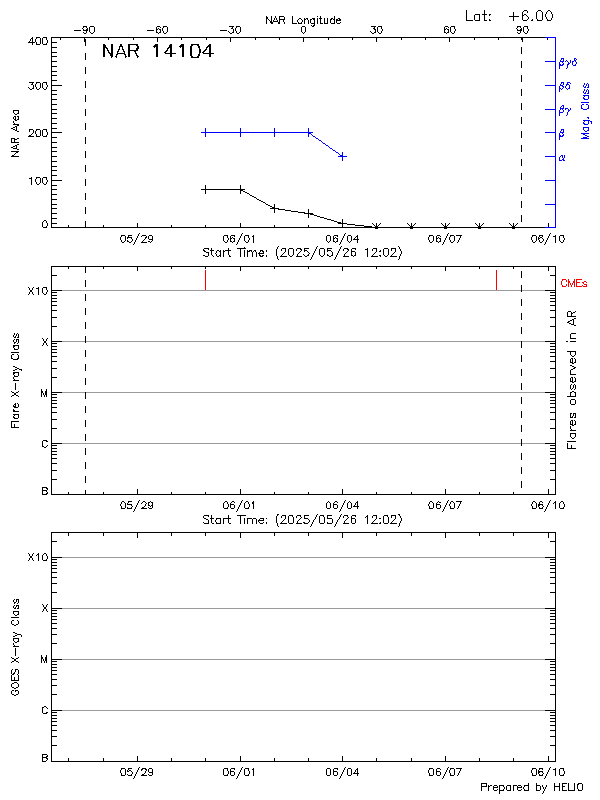

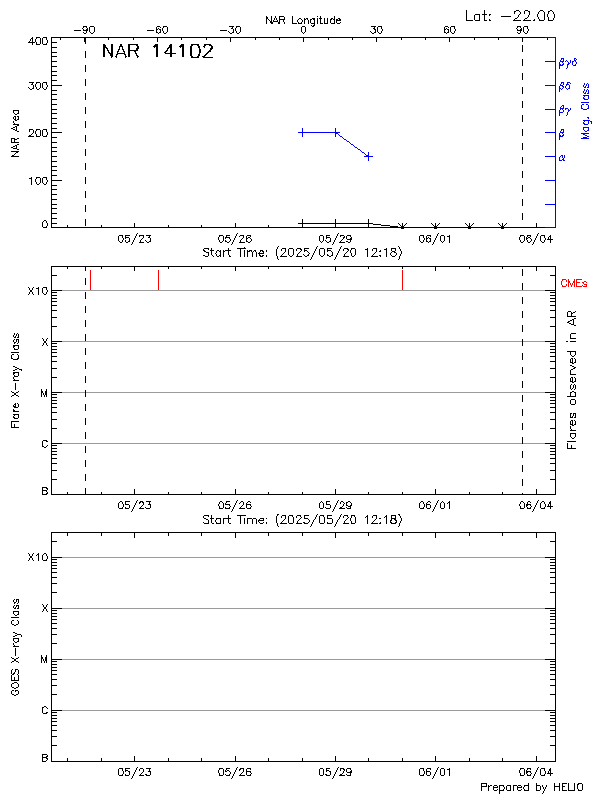

| URL_STAT | Link to the AR Summary page in the HELIO Solar Activity Archive (Hover over the link to see a preview of the AR evolution plot) |
